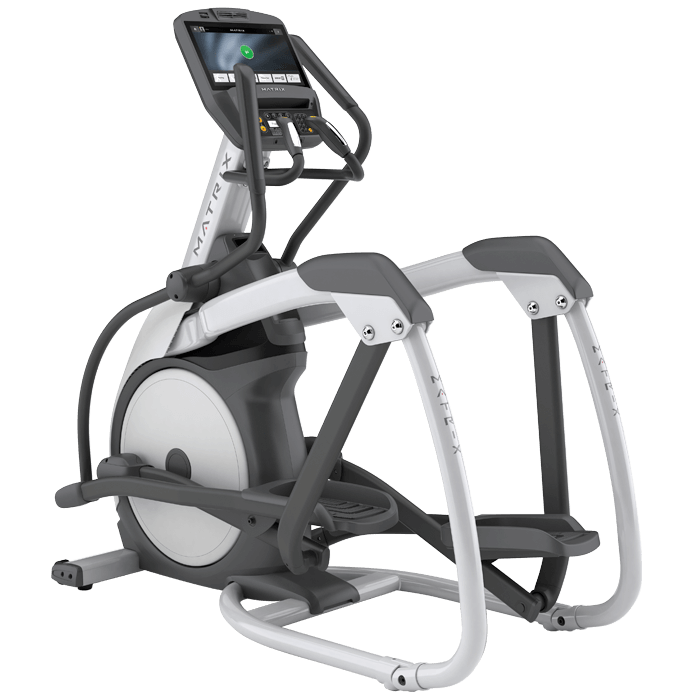

The Matrix E7XI Elliptical offers a dynamic contralateral motion with tapered, dual-action handlebars that replicates the body’s natural movement for the smoothest workout around.
Free of wheels and tracks, Matrix's patented suspension design provides a constant rate of acceleration for an unfailingly smooth exercise experience.
The removable quick-access disk makes it easy to keep our ascent trainers available and performing at their best.
The Matrix E7XI Elliptical's Ergo Form™ grips with integrated resistance controls enhance comfort and offer instant access to key functions.
COMMERCIAL WARRANTY | |
---|---|
Frame | 7 Years |
JID Hybrid Generator | 5 Years |
Parts & Labor | 3 Years |
**Wear Items | 90 Days |
SPECIFICATIONS | |
Display Type | 41 cm / 16" class projective capacitive touchscreen LCD |
Display Feedback | Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, RPM, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display |
User-defined Multi-language Display | Yes - English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese, Japanese, Korean, Swedish, Finnish, Russian, Arabic |
Resistance Range | 1-25 |
Workouts | Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn, Fitness Test, Glute Training, Calorie Goal, Distance Goal, Time Goal, Sprint 8 |
CSAFE Ready-FitLinxx™ Certified | Yes |
IPTV Compatible | Yes |
FitTouch™ Technology | Yes |
Instant On Technology | NA - powered |
One Button Start | Yes |
On-the-fly Program Change | Yes |
Integrated Vista Clear™ Television Technology | Yes |
FITCONNEXION™ Ready | No |
WiFi | Yes |
Multimedia Playback | Yes - compatible with most tablet and smart phone systems |
iPod® Compatible | Yes |
Nike + iPod® Compatible | No |
Personal Fan | Yes |
USB Port | Yes |
Virtual Active™ Compatible | Yes - included |
Asset Management Compatible | Yes -included |
mPower Workout Tracking and Fitness Network Compatible | Yes |
Web Connectivity | Yes - custom app interface in addition to web browser |
Facility Communication Portal/Calendar | Yes - programmed through Asset Management |
Pause Function | Yes |
FEATURES | |
Stride Length | 53.3 cm / 21" |
RFID | Optional |
Personal Trainer Portal | Optional |
Step-on Height | 24 cm / 9.5" |
Contact & Telemetric HR | Yes |
Footpad Insert Type | None |
Pedal Spacing | 6.4 cm / 2.5" |
Handlebar Design | Multi-position dual action / premium ergo-bend stationary |
Remote Buttons | Yes |
Ethernet Port | Yes |
Resistance System | Brushless generator |
TECH SPECS | |
Power Requirements | 100v-240v - 50/60Hz AC |
Minimum Watts | 4 powered |
Minimum RPM | 10 powered |
Assembled Dimensions | 178 x 74 x 174 cm / 70" x 29.2" x 68.5" |
Max User Weight | 182 kg / 400 lbs. |
Assembled Weight | 182.7 kg / 402 lbs. |
Shipping Weight | 195.5 kg / 430 lbs. |
