The Matrix ALB7XE Lower Body Ascent Trainer gives members maximum intensity in minimum space. Matrix ascent trainers deliver a dynamic lower body workout with a small footprint that helps you make efficient use of your cardio floor.
The ALB7XE Lower Body Ascent Trainer offers a synchonized, personal workout - Responsive incline adjustment and variable stride length work in perfect harmony to deliver a dynamic exercise experience and personalized intensity.
The removable quick-access disk makes it easy to keep our ascent trainers available and performing at their best.

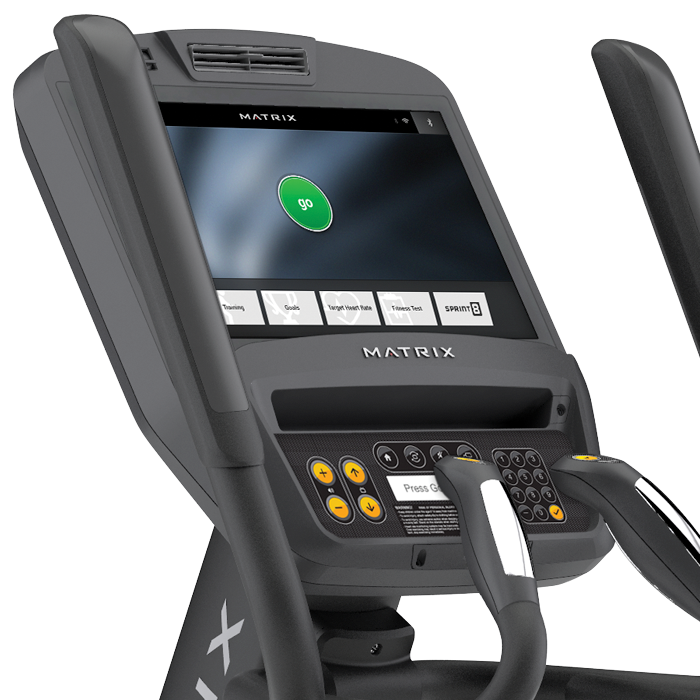

Matrix Ascent Trainers' Ergo Form™ grips with integrated incline and resistance controls enhance comfort and offer instant access to key functions.
COMMERCIAL WARRANTY | |
---|---|
Frame | 7 Years |
JID Hybrid Generator | 5 Years |
Parts & Labor | 3 Years |
**Wear Items | 90 Days |
SPECIFICATIONS | |
Display Type | 38 cm / 15" touchscreen LCD |
Display Feedback | Time, Distance (Kilometers or Miles), Calories, Calories per Hour, Speed, Incline, RPM, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display |
User-defined Multi-language Display | Yes - English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese, Japanese, Korean, Swedish, Finnish, Russian, Arabic |
Resistance Range | 1-25 |
Workouts | Manual, Rolling Hills, Target HR, Interval Training, Constant Watts, Fat Burn, Fitness Test, Glute Training |
CSAFE Ready-FitLinxx™ Certified | Yes |
Netpulse Compatible | No |
IPTV Compatible | No |
FitTouch™ Technology | Yes |
Instant On Technology | Yes |
One-button Start | Yes |
On-the-fly Program Change | Yes |
Integrated Vista Clear™ Television Technology | Yes |
FITCONNEXEON™ Ready | No |
WiFi Enabled | Yes |
Multimedia Playback | No |
iPod® Compatible | Yes |
Nike + iPod® Compatible | Yes |
Personal Fan | Yes |
USB Port | Yes |
Virtual Active™ Compatible | Yes |
Asset Management Compatible | Yes |
mPower Workout Tracking and Fitness Network Compatible | No |
Web Connectivity | No |
Facility Communication Portal/Calendar | No |
Pause Function | Yes |
Reading Rack | Yes |
FEATURES | |
Stride Length | 51 - 61 cm / 20 - 24" |
Incline Range | 24% - 54% (15 ° range) |
Step-on Height | 24 cm / 9.5" |
Contact & Telemetric HR | Yes |
Footpad Insert Type | Yes - Premium |
Pedal Spacing | 6.4 cm / 2.5" |
Handlebar Design | Multi-position ergo-bend stationary |
Remote Buttons | Yes |
Ethernet | Yes |
Resistance System | Brushless generator |
TECH SPECS | |
Power Requirements | Self-powered / powered 100v-240v - 50/60Hz AC |
Minimum Watts | 4 powered / 57 self-powered |
Minimum RPM | 10 powered / 25 self-powered |
Assembled Dimensions | 178 x 74 x 174cm / 70" x 29.2" x 68.5" |
Max User Weight | 182 kg / 400 lbs. |
Assembled Weight | 196.5 kg / 434 lbs |
Shipping Weight | 219.6 kg / 485 lbs |
