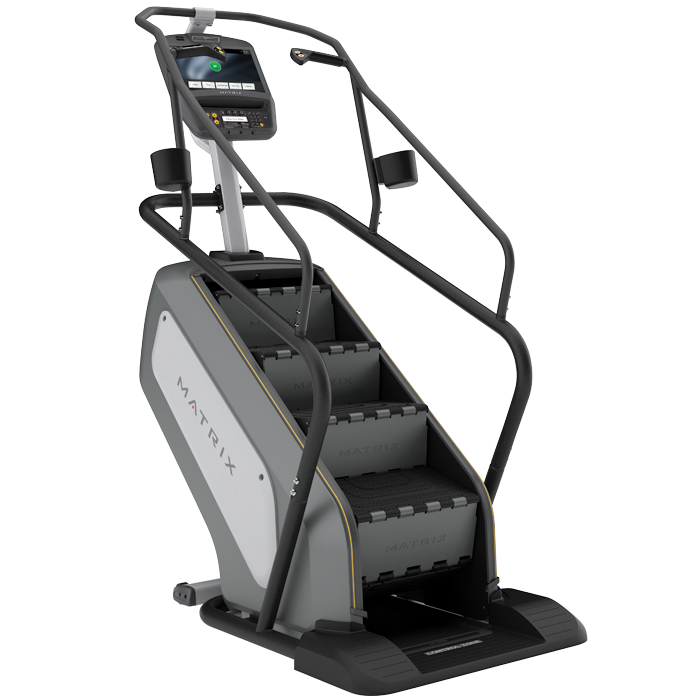

The Matrix C7XE ClimbMill gives your members the most authentic stair-climbing workout on the market with a combination of high-design, low-maintenance machines that can live virtually anywhere in your facility.
The Matrix ClimbMills' steps are a full 10" deep to accommodate a wide range of users, and color variation make proper foot placement easier than ever.
Matrix's exclusive sweat management system protects critical components to extend the life of the ClimbMill, and a collection tray keeps slippery perspiration off your floor.
Ergo Form™ grips with integrated pause/stop and speed control enhance comfort and offer seamless workout adjustments.
COMMERCIAL WARRANTY | |
---|---|
Frame | 7 Years |
JID Hybrid Generator | 5 Years |
Parts & Labor | 3 Years |
**Wear Items | 90 Days |
SPECIFICATIONS | |

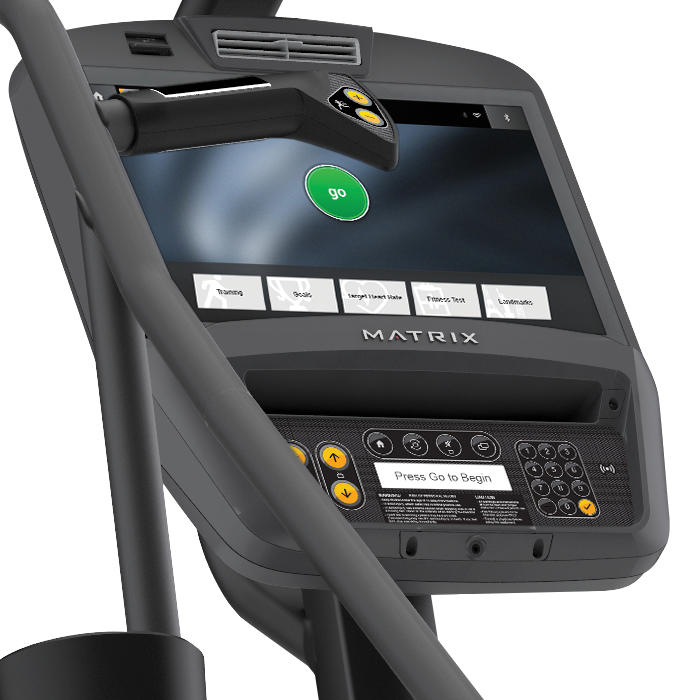

Display Type | 38 cm / 15” touchscreen LCD |
Display Feedback | Time Elapsed, Time Remaining, Time of Day, Total Program Time, Total Steps, Calories, Calories per Hour, Average SPM, SPM, Floors Climbed, Heart Rate, METs, Watts, Dynamic Profile Display, Static Profile Display |
User-defined Multi-language Display | Yes - English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese, Japanese, Korean, Swedish, Finnish, Russian, Arabic |
Resistance Levels | 1-25 |
Workouts | Manual, Training Workouts (Rolling Hills, Interval Training, Calorie Training, Goal Training), Fat Burn, Target HR, Fitness Test (Sub-Maximal Test, WFI Test, CPAT), Constant Watts |
Steps Per Minute | 24 - 162 |
CSAFE Ready-FitLinxx™ Certified | Yes |
IPTV Compatible | No |
Pro:Idiom Compatible | No |
Netpulse Compatible | No |
FitTouch™ Technology | Yes |
One-button Start | Yes |
On-the-fly Program Change | Yes |
Integrated Vista Clear™ Television Technology | Yes |
FITCONNEXION™ Ready | No |
WiFi | Yes |
Multimedia Playback | No |
iPod® / iPhone® / iPad® Compatible | Yes |
Nike + iPod® Compatible | Yes |
Personal Fan | Yes |
USB Port | Yes |
Virtual Active™ Compatible | Yes |
Asset Management Compatible | Yes |
mPower Workout Tracking and Fitness Network Compatible | No |
Web Connectivity | No |
Facility Communication Portal/Calendar | No |
Pause Function | Yes |
Reading Rack | Yes |
FEATURES | |
Step Depth | 25.4 cm / 10" |
Step Height | 20.3 cm / 8" |
Contact & Telemetric HR | Yes |
Delineated Steps | Yes |
Handlebar Desig | Optimized handrails with Ergo Form Grips |
Remote Buttons | Yes |
Ethernet Port | Yes |
Resistance System | ECB w/ flywheel |
TECH SPECS | |
Power Requirements | 120v / 60Hz AC power |
Assembled Dimensions | 165 x 85 x 212 cm / 65" x 33.5" x 83.5" |
Assembled Weight | 158 kg / 348 lbs. |
Shipping Weight | 167 kg / 368 lbs. |
Max User Weight | 182 kg / 400 lbs. |
